Fire Survival
Cables
Fire Survival
Cables
Electrical systems are estimated to be the cause of around one fifth of all fires. Cables can contribute significantly not only to the cause of fires, but also to the spread of fire and to heat emission in case of fire.

Our specially constructed fire survival cables maintain their integrity even when exposed to fire, ensuring that all your critical circuits are protected.
Electrical systems are estimated to be the cause of around one fifth of all fires. Cables can contribute significantly not only to the cause of fires, but also to the spread of fire and to heat emission in case of fire.

Our specially constructed fire survival cables maintain their integrity even when exposed to fire, ensuring that all your critical circuits are protected.
Applications
Fire Survival cables are used in sensitive environments to maintain circuit integrity during and after any incidence of fire. They are designed to withstand high temperatures of a defined period without any electrical breakdown.

Fire testing methods and building safety standards often define specific fire safety requirements applicable to cables. The construction of our Fire Survival cables is different compared to ordinary cables. The conductor is manufactured with a specially designed heat barrier and fire resistant insulation which resists the fire to reach conductor surface.


Applications


Fire Survival cables are used in sensitive environments to maintain circuit integrity during and after any incidence of fire. They are designed to withstand high temperatures of a defined period without any electrical breakdown.

Fire testing methods and building safety standards often define specific fire safety requirements applicable to cables. The construction of our Fire Survival cables is different compared to ordinary cables. The conductor is manufactured with a specially designed heat barrier and fire resistant insulation which resists the fire to reach conductor surface.

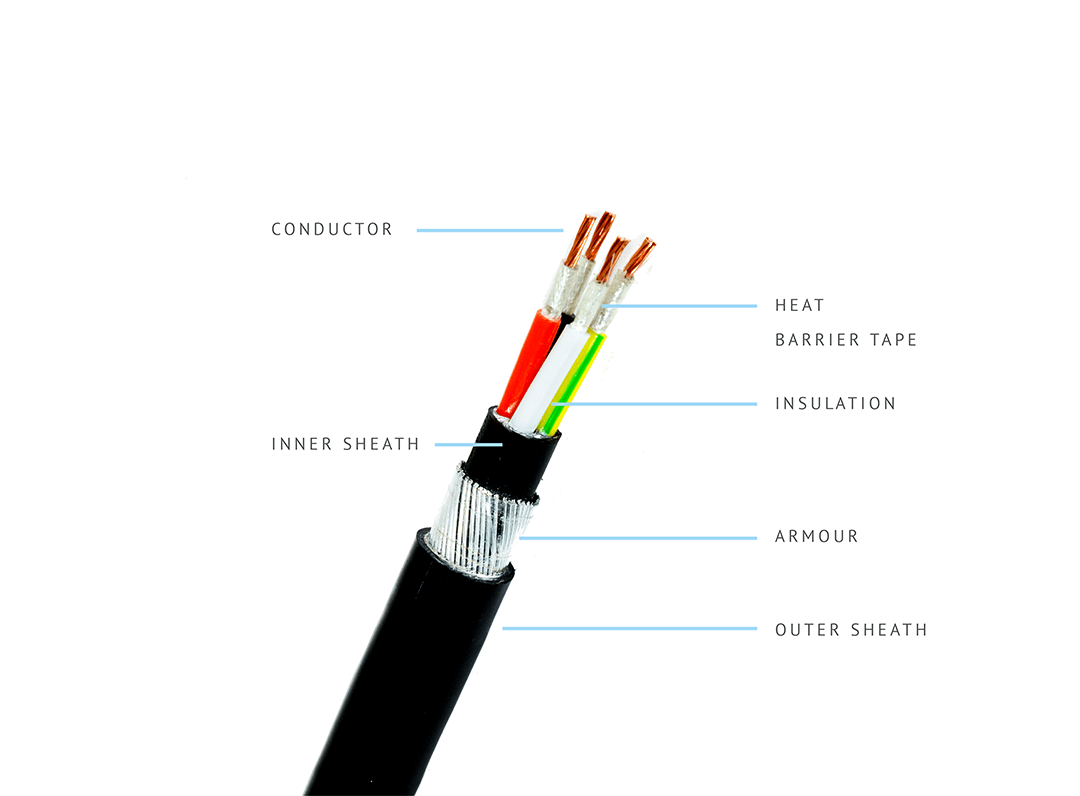

Specifications
Conductors
The cables are manufactured using high conductivity Solid / Stranded (ABC/ATC) copper conductor.
Insulation
Our fire survival cables use XLPE / LSZH insulation.
Shielding (Optional)
Optional shielding made of Aluminium mylar tape, available as per customer requirement.
Outer Sheath
The cables are outer sheathed with HFFR / ZHFR material.
Armour
The armour is made up of galvanized steel wire / strips over armouring fibre. Glass tape is also provided.
Specifications
Conductors
The cables are manufactured using a Solid / Stranded copper conductor.



Insulation
Our fire survival cables use XLPE insulation.



Outer Sheath
The cables are sheathed using ZHFR and HFFR material.



Armour
The armour is made up of galvanized steel wire / strips over armouring fibre. Glass tape is also provided.



Shielding (Optional)
Optional shielding made of Aluminium mylar tape, available as per customer requirement.
Our fire survival cables are manufactured in accordance to the specifications of BS 6387 (CAT A/B/C, W, Z), BS 7846 (CAT F1/F2/F3, VDE-0815 & 0816), ICE 331, BS 6387, IEC 60331, IEC 60332, BS-7955, IEC-189 (1 & 2)
Find out about our other products
INSTRUMENTATION CABLES COAXIAL CABLES SUBMERSIBLE FLAT CABLES HOUSE WIRING CABLES POWER CABLES
CONTROL CABLES SOLAR CABLES BMS CABLES FLEXIBLE CABLES FIRE SURVIVAL CABLES


Standardization


Our fire survival cables are manufactured in accordance to the specifications of BS 6387 (CAT A/B/C, W, Z), BS 7846 (CAT F1/F2/F3, VDE-0815 & 0816), ICE 331, BS 6387, IEC 60331, IEC 60332, BS-7955, IEC-189 (1 & 2)
